After all, a transaction monitoring program is a long list of numbers. The point at which a money wire becomes strange. The time window on which the deposits are accumulated. How much deviation from a peer baseline is suspicious. Each of these numbers is a risk decision. And the quality of the program is, in any meaningful sense, the quality of those decisions. Choose them well and the institution can detect real activity at survivable alert volume. Pick them poorly, the program slowly drifts out of alignment with the risk it was designed to catch. And everyone busy investigating false positives thinks the system is working.
Threshold tuning is the art of deliberately choosing those numbers, with statistical evidence, and recalibrating them as the world changes. It is one of the most important areas of anti money laundering (AML) operations, but also one of the least practiced. Examiners are increasingly asking for the statistical work behind each threshold and institutions that cannot show it are finding that “industry standard” and “we inherited this number” are no longer acceptable answers. The following sections will go in depth in how to set proper thresholds for AML triggers.
- What Is Threshold Tuning, and Why Does It Matter?
- Risk-Based vs Static Thresholds
- Customer Segmentation: The Foundation of Calibration
- Establishing Baselines: Statistical Methods
- Setting the Threshold: Where Above-Normal Becomes Suspicious
- The Trade-Off Curve: False Positive Rate vs Detection Rate
- Trigger-Based Recalibration
- Documenting Threshold Decisions for Examiners
- Common Threshold Tuning Mistakes
What Is Threshold Tuning, and Why Does It Matter?
Threshold tuning is the process of defining and periodically tuning the numerical parameters that trigger a transaction monitoring rule. The volume that a single transaction can be reviewed over. The count and window that describe a velocity situation. The deviation from baseline that identifies a peer as an outlier. All the rules in the library have at least one such parameter, and many have several.
It makes a difference because each of those parameters has to be in between two costs. Reduce the threshold and the rule fires more often, detecting more real activity but also sending more legitimate transactions to analysts who have to deal with them. Increase the threshold, and the rule alerts less: Investigation cost drops, but real activity gets through. Threshold tuning is the intentional, evidence based balancing between those two costs. The institution’s threshold settings are the most concrete expression of its risk appetite.
The link to the risk based approach is direct. The FATF’s Recommendation 1, the EU’s AML Directive series and AMLA framework, the U.S. monitoring to be “tailored” or “reasonably designed” relative to the institution’s risk profile, as required under the Federal Financial Institutions Examination Council (FFIEC) BSA/AML Examination Manual, and equivalent regimes globally all reinforce this principle.
A threshold that ignores the risk profile of the customer it applies to does not constitute a risk based control. It is a uniform control with a risk based label and supervisors are considerably less willing to accept the label without the work behind it.
The economic logic underpins the regulatory one. Each alert has an approximately knowable investigation cost: Analyst time, case management overhead, opportunity cost of work not done elsewhere. The expected cost of each false negative is low probability, high severity, undetected laundering, missed SARs, and regulatory enforcement. But the institution that sets thresholds without measurement is effectively randomly allocating an investigation budget, and accepting an unknown false negative risk. Tuning makes both numbers visible. Visibility is the precondition for control.
Risk Based vs Static Thresholds
Static threshold is one number that applies to the entire customer base. The rule fires above $10,000, whether it is a retail customer’s account where that amount represents a month’s salary or a corporate treasury’s account where that amount represents a routine intra day position. The number is convenient, easy to communicate, and is almost always wrong.
It's wrong both ways at the same time. A static threshold sits well above the normal range of activity for lower risk, lower volume customers, so a transaction at $9,500 that is wildly anomalous for them goes through silently. For higher volume customers the same threshold is well within their routine activity producing a stream of alerts on transactions that are perfectly congruent with their stated profile. One end of the program is drowned in noise, the other goes blind.
By contrast, risk based thresholds are segment specific. The same conceptual rule, “large outbound wire”, applies in every segment, but the number that defines “large” is calibrated to the baseline of each segment. The retail segment might have a trigger of $9,000; the SME segment $45,000; the corporate segment much higher; the high risk jurisdiction segment lower than its volume would suggest. Now the threshold is segment dependent and not a constant.
The regulation is framed directly. In the Financial Action Task Force (FATF) sense, a risk based approach is one that allocates compliance attention in proportion to risk. A single global threshold cannot do that by design, as it treats all customer behavior as the same, regardless of underlying risk. Where supervisors find static thresholds in old programs, they see it as proof that calibration was never done.
Customer Segmentation: The Foundation of Calibration
Risk based calibration starts with segmentation. The institution slices its customer population along dimensions that materially change what ‘normal’ looks like and any subsequent threshold decisions are made at the segment level rather than the bank wide level.
Several dimensions are consistently important. The most basic split is customer type retail, SME, corporate, correspondent, financial institution, nonprofit, government, each with characteristically different volume and velocity profiles. Industry matters within the corporate and SME tiers, captured via North American Industry Classification System (NAICS) or SIC or similar classifications: A logistics business, a money services business, a marketing agency and a precious metals dealer have radically different normals and treating them as one segment buries the signal. Product adds another axis to a current account, a trade finance facility, a prepaid card program, a virtual asset service and a remittance corridor generate different transaction patterns by design. Geography captures both domestic vs. cross border behavior and exposure to higher risk corridors and FATF jurisdictions. And the customer risk score, derived from the customer risk assessment, from the institution’s own data, captures the total inherent risk that should tighten thresholds at the high end of the scale and loosen them, deliberately and modestly, at the low end.
Adding separate channels for branch, digital, mobile, agent is a useful dimension in institutions where mix changes behaviour materially.
The output of a segmentation is not a big matrix with each customer in his own cell. Such extreme defeats its purpose by creating segments too small to yield meaningful statistics. The compromise that is practical is a manageable number of cells, typically a few dozen in the major dimensions, each large enough for statistical baseline work, and each uniform enough that one set of thresholds really does serve it. The segmentation scheme itself becomes a governed artifact: It is reviewed, approved and updated just like any other risk decision. Because every downstream threshold depends on it.
Establishing Baselines: Statistical Methods
Within each segment, the institution asks a deceptively simple question that merits an empirical answer: What is normal? There are a variety of statistical methods commonly employed, each with its own assumptions and trade offs.
The mean plus standard deviation method computes the mean and standard deviation of the segment over a historical window for each behavior the rule will measure. It’s fast, intuitive and well understood but it assumes the underlying distribution is approximately normal and most transaction data is anything but. A naive application, however, sets too high thresholds in skewed segments and misses real anomalies sitting inside the inflated tail, because heavy right tails and clusters of outliers distort both the mean and the standard deviation. This approach works when the segments are clean and the behavior is well behaved. In messier segments it underperforms.
The percentile method makes no distributional assumption. The institution just asks what is the 95th, 99th or 99.5th percentile of the behaviour of the segment and uses that empirical level as the threshold. Robust to outliers, easy to explain to examiners (“only the top 1% of activity in this segment alerts”) and it is also easy to recompute. The price is that percentiles tell you where the tail starts, but not whether the tail is suspicious, a segment of mostly suspicious customers will have a tail that is completely suspicious, and the 99th percentile of bad behavior remains bad.
Peer Group Comparison compares each individual customer to its peer group baseline, rather than a fixed number for the whole segment. If a customer’s monthly wire volume is 3 standard deviations above the peer group mean, a peer deviation alert is triggered. The upside is sensitivity: A customer behaving wildly differently from comparable customers is flagged even if their absolute volume sits below a segment wide threshold. The price is that defining peer groups is a design decision in itself and it only works when peer groups are stable and large enough for the deviation math to matter.
The longitudinal version of historical pattern analysis is comparing each customer to themselves over time, rather than to peers. If a customer’s current month activity deviates significantly from their trailing twelve month baseline, regardless of where they fall in the segment or peer distributions. This captures behavioral changes that cross sectional methods miss, but it requires enough history per customer, so it doesn't help much in the first months of a new account, exactly when mule and bust out risk is highest.
Mature programs combine these methods, rather than picking one. Segment percentiles set the floor; deviation from peer catches outliers within segment; historical pattern catches behavioral change at the customer level. The methods are additive, not replacement.
Setting the Threshold: Where Above Normal Becomes Suspicious
Once you have the baselines in place, the next question is where on those baselines the threshold really lies. Three approaches are generally used. The approach is determined by the data and the goal of the rule.
The z-score method defines the threshold as a constant number of standard deviations from the mean of the segment. A normal distribution has a z of two at roughly the top 2.5%, a z of three at roughly the top 0.15%. The z score is interpretable, allows the institution to adjust sensitivity by changing a single policy variable, and performs well when the underlying distribution is approximately normal. The weakness is the same as for any standard deviation method: Skewed or heavy tailed transaction data distorts the result, and the chosen z may not correspond to the percentage of population the policy intended.
The percentile threshold approach avoids the distributional problem by defining the threshold as an empirical percentile rather than a number of standard deviations . "Alert on top 1% of segment activity" is a defensible, distribution-free statement. The threshold reprices automatically as the segment's behavior shifts over time, which can be an advantage (it tracks reality) or a hazard (it can drift unnoticed if the underlying population changes character). With percentile thresholds, the percentile itself becomes a controlled policy variable, reviewed and approved as any other.
The peer deviation approach sets the threshold on a customer’s distance from their peer group baseline, not an absolute number. This is the most behaviourally adaptive of the three. It doesn't ask if $50,000 is large in absolute terms but if it's large for this customer relative to their peers. The approach is most appropriate when variation within a segment is high enough that any absolute threshold either alerts on everyone or no one, and when the institution can credibly define stable peer groups. This approach rapidly breaks down with unstable or sparse peer groups.
In practice, the pattern is a hybrid. Use percentile thresholds for well populated, high volume segments (where the distribution free properties matter). Use z scores in well behaved segments where the math is clean. Overlay peer deviation on either so that customers who are behaving in line with the segment as a whole but are sharply out of line with their immediate peers get caught. None of these methods is ‘correct’ in itself. What is correct is the ability to explain in writing why the method selected fits the segment, the data and the typology.

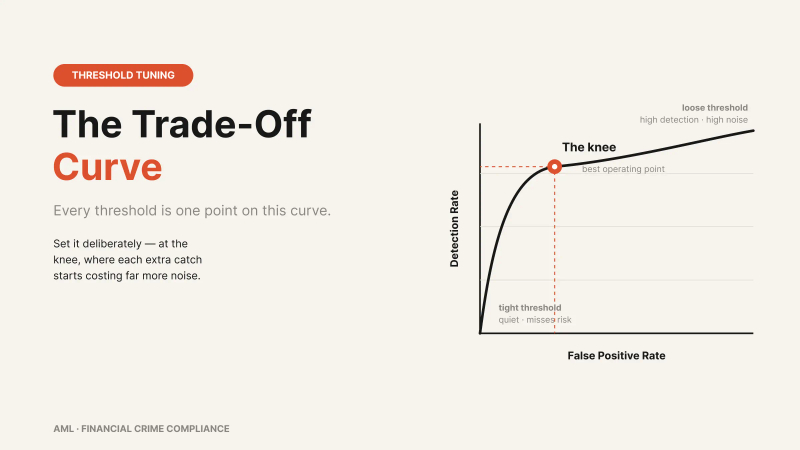

The Trade Off Curve: False Positive Rate vs Detection Rate
The institution has a threshold, and in principle every threshold generates a pair of measurable numbers, such as the false positive rate at the threshold (how much of what alerts is noise) and the detection rate (how much of the real activity in the data the threshold catches). You just plot all the possible thresholds on a graph with false positive rate on one axis and detection rate on the other so that you get a curve that is the center point of threshold tuning, and learning to read that curve is what makes a calibrated program different from a guessed program.
The form is the same. If you set the threshold very low, so low that it will almost always go off, then the detection rate is very high, but so is the false positive rate. At very loose thresholds the false positive rate drops to nothing but so does detection. Between these extremes there is a curve that usually turns quite sharply somewhere in the middle. That bend, often called the "knee" of the curve, is the region where each additional unit of detection comes at a rapidly increasing cost in false positives, and each additional unit of false positive reduction comes at a rapidly increasing cost in missed detection. The knee is where the most informative thresholds tend to lie.
The explicit risk decision the institution is making is the choice of the operating point on the curve. You work hard to one side of the knee, and you accept high alert volume in return for maximum detection. This is a defensible posture for high risk segments, high risk products or rules targeting severe typologies. Performing well to the other side means accepting higher miss risk for operational sustainability, a defensible position in lower risk segments where population behavior is well understood and the typology is less severe. The middle is rarely the right answer as a matter of course, it is right only if it can be argued from the data.
In practice, the methodology is simple to describe and difficult to implement. Generate the curve from historical or sandboxed data, seeded in confirmed suspicious cases to give the detection axis empirical meaning. Identify the knee. Select the operating point deliberately as a policy decision. Capture the justification. Then, and this is where most programs fail, return and rebuild the curve periodically because both axes will shift as the customer base, product mix and threat environment change. The threshold that sat on the knee two years ago may be way off to one side today, not doing either job well.
Trigger Based Recalibration
Annual review cycle is necessary but not sufficient. There are a number of types of events that should trigger off-cycle recalibration, because waiting for the calendar to roll around is the difference between detection and the sort of finding that ends up in an enforcement action.
A new product launch is the most obvious trigger. All existing thresholds were tuned on a baseline without transaction patterns of this new product. Therefore, the rules either ignore the product completely, or use numerics that were not based on any empirical data of this product. The new product needs a baseline, and segment thresholds, before it goes live at scale, not after.
A new customer segment, a meaningful expansion into a new industry, geography or customer class, has the same effect. The baseline data the institution used to calibrate yesterday does not describe today’s population. Continuing to apply the old thresholds is an implicit assumption that the new segment behaves like the old one.
Geopolitical shifts are no longer rare events but events that repeat themselves. Each major shift reconfigures the landscape of typologies. The Russian invasion of Ukraine, in February 2022, triggered the largest sanctions cascade in modern history, shifting the cross border payment risk landscape for UAE and Central Asian corridors, and immediately making entire customer segments more significantly risky. The October 2023 Israel-Hamas conflict changed the landscape of charity and informal value transfer corridors as well as counterterrorism financing typologies. The Hormuz disruption in 2025–2026 caused the U.S. sanctions regime to be carved out and diverted oil-related flows. Institutions that failed to modify their threshold settings in response to each of these events which are recalibration triggers rather than quarterly newsletter items have discovered the gap in subsequent assessments.
Emergence of typology is also in the same category. Each emergence called for new or recalibrated rules: When ransomware operators settled on stablecoin payouts, when Southeast Asian scam compounds industrialized pig butchering, when synthetic identity fraud went mainstream. Regulator advisories, the institution’s own SAR patterns, and external intelligence sharing forums typically provide a combination of signals for a typology’s maturity level to recalibrate against.
Two operational signals should also trigger review: A sharp, unexplained shift in the volume of alerts a rule is generating in either direction and a material change in the true positive yield of the rule. Both suggest that something below the threshold, the customer base, the data, or the behavior, has changed such that the threshold no longer captures it.
Documenting Threshold Decisions for Examiners
A threshold without documented rationale is not a control. The examiners are increasingly explicitly asking to see the work behind each calibration decision and the lack of that work is treated as the lack of the control itself.
The defensible threshold documentation pack has five sections. The methodology document explains the statistical approach used to set thresholds in this segment: Which baseline method, which threshold setting approach, which policy variables, and why. The segment baseline data contains the empirical numbers to which the method was applied, including the date and span of the underlying sample. The decision rationale explains why the threshold chosen is appropriate for this segment, this rule and this institution’s risk appetite, the explicit position on the trade off curve. The change log records every change made since the rule was added with timestamp, approver and reason. The validation results reflect what happened when the threshold was tested pre deployment and what its observed performance has been since on alert volume, false positive rate, true positive yield, and any back test results.
When all five are present and current, the threshold review portion of an exam is a presentation, not a defense. When they are not, the institution learns in the exam that “industry practice” is not the same as a documented risk based decision in the supervisor’s vocabulary. The effort to document them is not a one off project, but a discipline built into the way thresholds are changed in the first place. Platforms that capture this trail automatically as part of the rule editing interface remove the recurring temptation to put off the paperwork until later.
Common Threshold Tuning Mistakes
The same few errors appear in institutions of all types and sizes and locations. Recognizing them is the cheapest tuning improvement action available.
Setting thresholds on convenience rounded numbers with no statistical basis. A structuring rule is defensible when the underlying typology is precisely evasion of the $10,000 threshold because $10,000 is the CTR level. A threshold at $25,000 or $50,000 because the numbers are round is not.” And “we inherited it” is not an explanation that holds water. Each number in a production rule should be explained in a statistical or typological way, not in terms of someone's mental habit.
Tweaking to lower the alert volume without measuring detection. When alert backlogs grow, the temptation is to raise thresholds to make the volume manageable. To do so without measurement is not tuning, it is hiding. The institution has eased the workload by accepting more false negatives, and unless the tradeoff was measured and approved, the supervisor will, with justification, see the change as a weakening of the control rather than an optimization of it.
No retesting after changes. A little experiment is an adjustment of the threshold. Without follow through measurement of what happened to alert volume, false positive rate and true positive yield after the change the institution is operating in the dark about whether the change achieved its purpose, or just created a new gap. After a change drift is quiet and the quiet is the danger.
Inheritance of other institutions’ thresholds. The thresholds of one peer bank may be perfectly suited to its book and completely inappropriate for yours. Your customer mix, product set, geography and risk appetite do not generate their numbers. Importing the numbers without redoing the calibration imports a risk decision that was never made by the institution.
Disregarding data quality dependencies. A threshold that is keyed off a field that is blank 30% of the time is not the control it appears to be. It is a partial control on the populated subset, and a silent gap on the rest. One class of mistake that supervisors are increasingly directly probing is tuning thresholds without auditing the data on which they depend.
Tuning one time and then no updating. The most common pattern across mature programs is a full calibration exercise at some point in the past, and years where the resulting thresholds were not touched. The calibration was correct at the time and then the program drifted away from reality and no one noticed until the curve was quite a ways away from the operating point. (That same drift creates the audit finding patterns discussed elsewhere.)
The overarching lesson is that threshold tuning is not an event. It is a loop: Measure, segment, baseline, set, deploy, observe, retune. Each iteration of the loop generates evidence for the next iteration. The institution that runs the loop on a recurring cadence stays calibrated. The institution that stops running the loop stays calibrated only until the world shifts under it.
